DATASHEET

MACHINE DETAILS

  • Machine no. 1038-90377

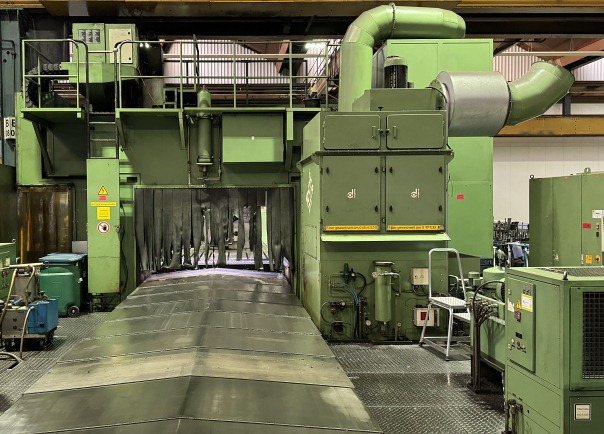

  • Machinetype Planer-Type Milling M/C - Double Column
  • Make WALDRICH-SIEGEN
  • Type FR - H - 100
  • Year of construction 1983 / 2000
  • Control CNC
  • Location -
  • Country of origin -
  • Delivery time -
  • Quotation ex location, not dismantled

  • Price

TECHNICAL DETAILS



  • x-travel 8.990 mm
  • y-travel 3.400 mm
  • z-travel 1.000 mm
  • passage 1.250 mm
  • passage width 2.490 mm
  • control Siemens Sinumerik 840 D
  • surface area 8.500 x 2.250 mm
  • workpiece weight 160.000 kg
  • turning speed range 0 - 4.000 U/min
  • tool taper ISO SK 50
  • spindle motor 40 kW
  • total power requirement kW
  • weight of the machine ca. t
  • dimensions of the machine ca. m


DESCRIPTION

WASI / recondstruction Henry Line

standard angle head 300 mm
standard angle head 600 mm narrow
extension 450 mm
universal angle head 525 mm
hirth-toothed, 360° automatically positioned




Changes and errors in the technical details and information reserved.
