DATASHEET

MACHINE DETAILS

  • Machine no. 1038-90379

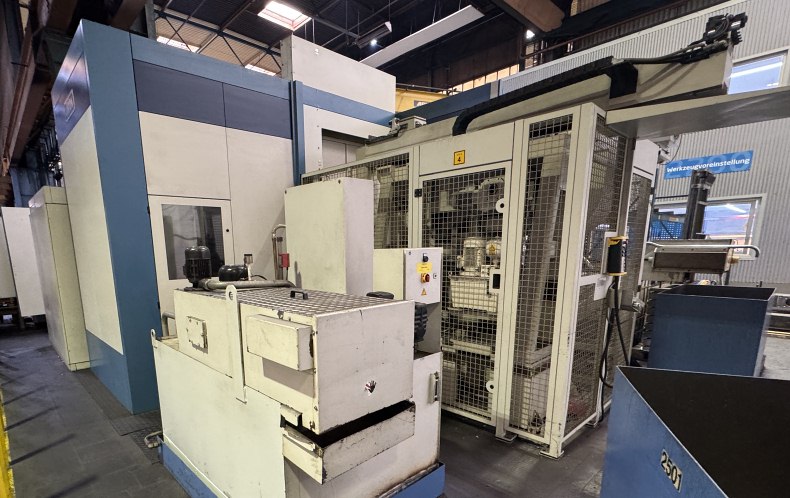

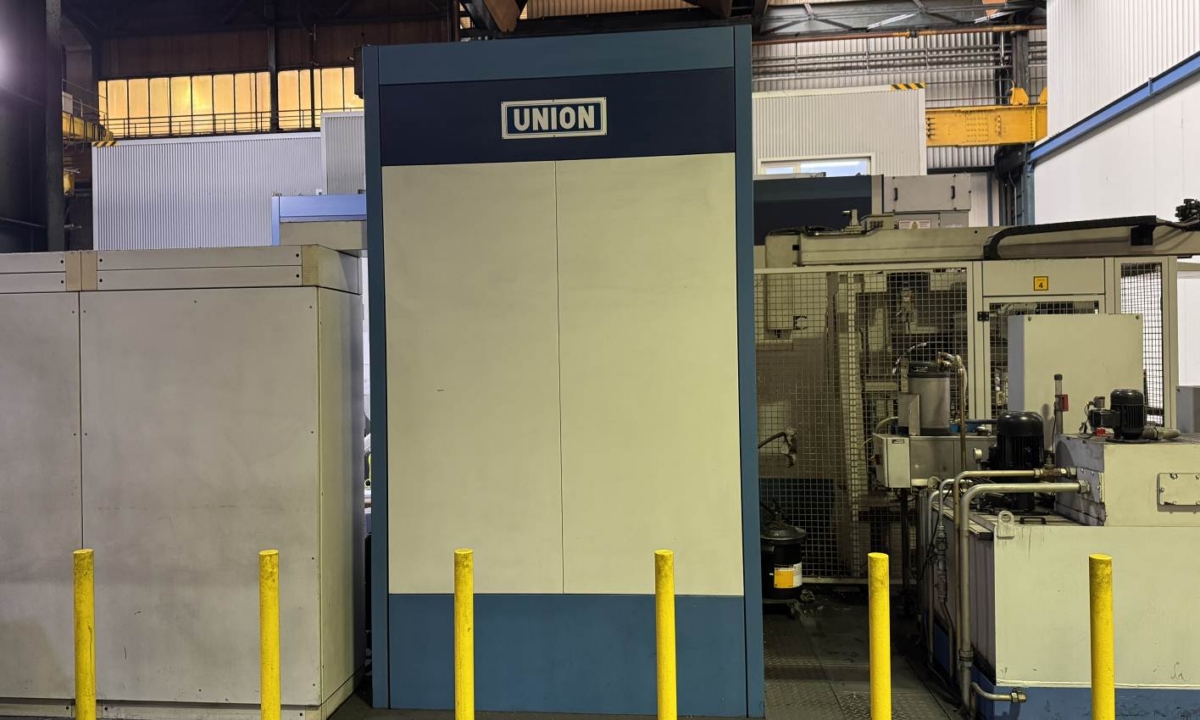

  • Machinetype Table Type Boring and Milling Machine
  • Make UNION

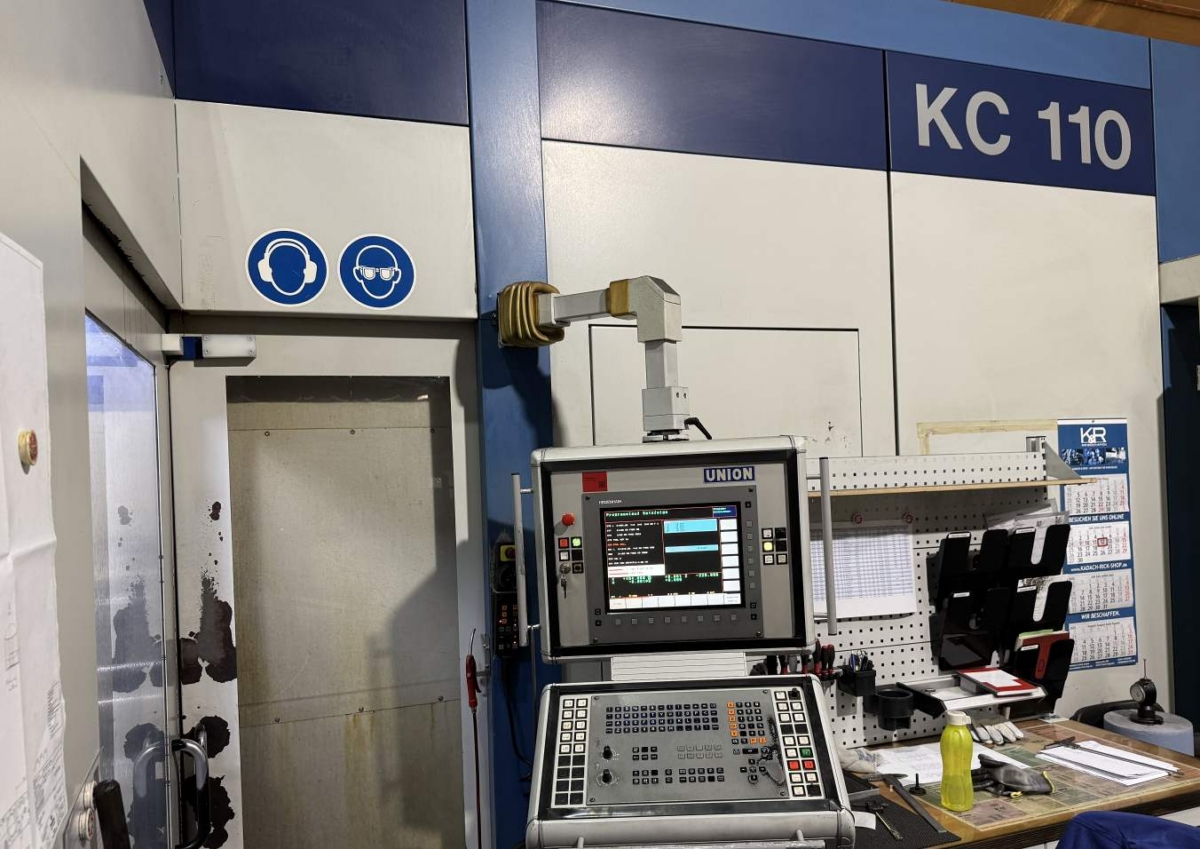

  • Type KC 110
  • Year of construction 2004
  • Control CNC
  • Location ex location
  • Country of origin Germany
  • Delivery time -
  • Quotation -

  • Price

TECHNICAL DETAILS



  • rapid traverse in the axis x + y 20 m/min
  • spindle diameter 110 mm
  • x-travel 2.500 mm
  • y-travel 2.000 mm
  • z-axis 1.500 mm
  • B-axis (table) 360 °

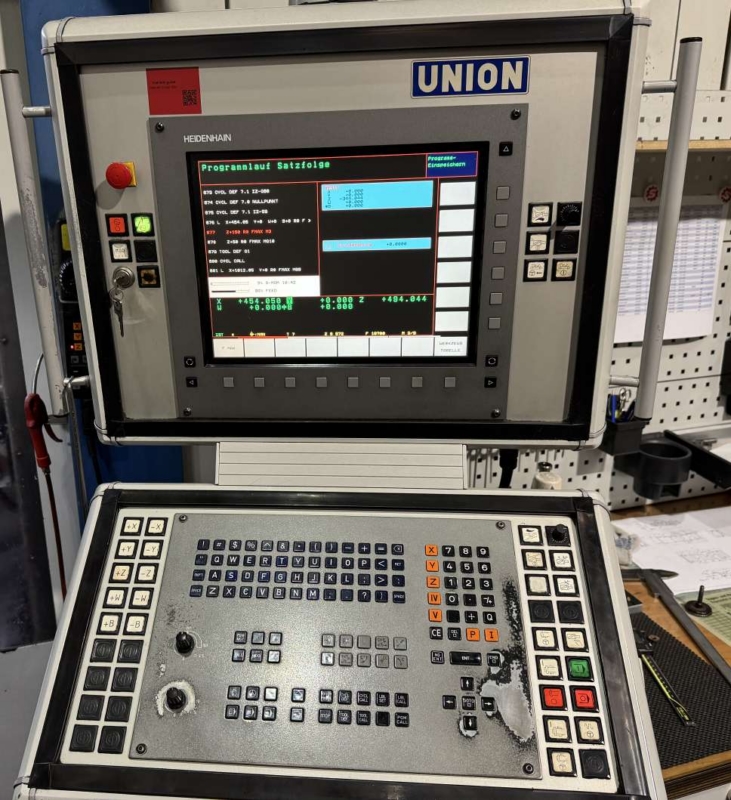

  • Control Heidenhain iTNC 530
  • table surface area 1.600 x 1.250 mm
  • workpiece weight 4.000 kg
  • turning speed range - spindle 5 - 5.000 U/min
  • tool taper ISO SK 50
  • spindle diameter 110 mm
  • capacity 63 KW
  • feeds - x-axis 15 m/min
  • feeds - y-axis 15 m/min
  • feeds - z-axis 15 m/min
  • rapid travel in X - Y - Z 20 mm/min
  • tool length - max. 500 mm
  • tool diameter 125 (250) mm
  • total power requirement kW
  • weight of the machine ca. t
  • dimensions of the machine ca. m



DESCRIPTION

NC table






Changes and errors in the technical details and information reserved.
